parts washers

Strip Contaminants with our degreasing machines

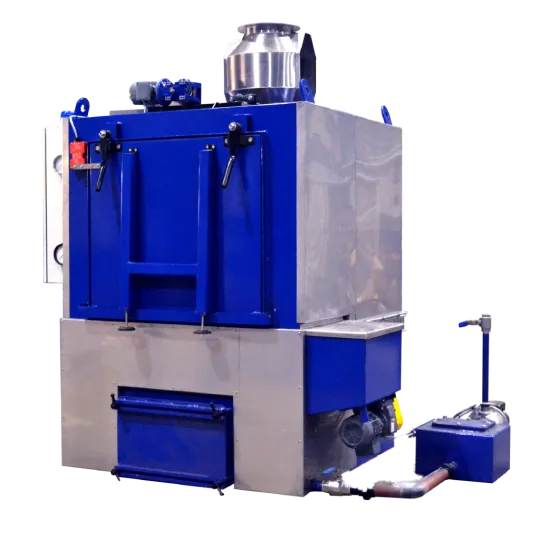

Parts Washer

Rotajet manufacture and install our parts washer range all over the world. With over thirty years experience, we continue to lead the way in the development of degreasing equipment for washing parts. We have extensive experience in washing parts in the aerospace industry with several NATO stock numbers for washing aviation components, as well as supplying integrated NDT solutions.

SPRAY WASHERS

Play Video

ULTRASONICS

SWARF WASHERS

Play Video

CHEMICALS

We know our machines are more than fit for purpose. We recognise, however, that machine downtime due to breakdowns is a major concern for our customers. That’s why we not only issue warranties on all our products, but we also offer full rental agreements on our spray washing machines.

We supply and service machinery throughout the world, either directly from the UK, or via approved agencies and working partners. This means that Rotajet’s parts washer range of standardised degreasing machines continues to grow, and has become recognised as the ideal machine for parts and component degreasing.

Rotajet offers a full range of ATEX Spray Washers that are ideal for use in the degreasing, decontamination, and sanitisation of parts, components, and other various equipment across a range of industries. With a spectrum of different machine types and sizes available, as well as adjustable settings and safety interlocks, Rotajet’s Spray Washers can be used for a broad range of applications to suit the required throughput rate.

FRONT LOADERS

TOP LOADERS

Play Video

TUNNEL WASHERS

ATEX WASHERS

With their small footprint, Top Loading Spray Washers are well suited to operations that are limited on space and require a small throughput rate. Manufactured out of stainless steel, these machines are robust and built-for-purpose with the ability to manage heavy materials, and with 4 available sizes can suit a broad range of applications.

Due to the high wash temperatures of up to 90 degrees, Rotajet’s RJ-TL series can remove even the most stubborn contaminants from products, whilst the adjustable timer allows the operator to control the time that products spend in the washing medium.

Available in three different sizes, Rotajet’s Front Loading Spray Washers provide the ideal solution for the decontamination of parts where a larger throughput rate is required. These machines are designed specifically to achieve a high level of quality cleaning with a pump pressure of between 6-9 BAR and the ability to reach temperatures of up to 90 degrees.

With a basket size of between 1350 and 1800mm, these machines have the capacity to clean various different parts across a wide range of industries. And to ensure the safety of the operator throughout the duration of the cleaning process, safety interlocks are fitted as standard to each machine to avoid any exposure to wash chemicals and extreme temperatures.

Alongside the standard range of spray washing machinery offered by Rotajet, we can also offer custom-built machines to cater to the most unique applications. If you would like to know more about how our Spray Washers can revolutionise your production, get in touch with our dedicated team.

Rotajet’s Tunnel Washing Systems offer an automated, continuous washing solution for degreasing high quantities of metal and plastic parts and components. Ideal for most industrial cleaning applications, these tunnel washing machines are particularly suited to operations where a high throughput rate is required.

Every tunnel washing system offered by Rotajet is manufactured with either a chain conveyor or an overhead track to transfer components through the multi-stage system automatically; without the need for operator input. With this level of automation in the cleaning and degreasing process, our tunnel washers can help to reduce operational labour spends whilst drastically increasing profit margins with the high throughput rate made achievable.

Each Rotajet tunnel washer is designed with a wash and a rinse stage as standard to suit most applications. For specialised applications such as surface treatment, we can fit an additional freshwater rinse and drying stage to the systems in order to deliver the highest quality of cleaning.

To provide a full, comprehensive cleaning operation, Rotajet’s tunnel washers are fitted with 4 complete stages as standard; a pre-wash, main wash, rinse, and a drying stage. Each of these stages can be tuned to suit the specific application, taking into account the levels of contamination and required quality and throughput rate of the operation.

With the optimised cleaning quality of this multi-stage system, a tunnel washing machine can be the ideal solution for a range of industrial applications, including; automotive, military, rail, aerospace, maritime, jewelry, printing, oil & gas, pharmaceuticals, and food & beverage.

No matter your application and requirements, get in touch with Rotajet dedicated team to find out how our solutions could work for you.

Rotajet caters to medical applications with the AMB 2000 machine that is designed to sanitise and decontaminate a range of medical equipment, including; wheelchairs, stretchers, and gurneys.

Whilst offering a comprehensive and quality cleaning solution to washing medical equipment, the Rotajet AMB 2000 takes the manual labour out of the cleaning process. On top of this, the optimised use of water and wash chemicals means that operational as well as labour costs can be kept to a minimum.

Historically, medical equipment used in ambulances for the transportation of patients would be sprayed down using jet washers and strong detergents. Whilst being an ineffective and inefficient way to decontaminate equipment, this process is also extremely labour-intensive and can be harmful to the environment.

With the repeatable medical-standard of cleaning offered by the AMB2000, you can be sure that your operation will be achieving the highest level of cleaning every time. For more information on Rotajet’s Sanitation equipment, get in contact with our dedicated team of experts.

Rotajet’s range of Ultrasonic Cleaning Equipment offers the ideal solution to the contamination removal and sanitation of components. With the best quality of cleaning, these machines are used across the world for their safe and non-destructive removal of grease, dirt, and oils, as well as a range of other various surface contaminants.

In the first stage of cleaning, parts are submerged into the wash solution. Depending upon the specific application and contaminants present, the wash solution used can be either solvent-based or aqueous to provide the best quality of cleaning.

SINGLE-STAGE

MULTI-STAGE

NDT SYSTEMS

In the next stage, the wash solution is agitated using ultrasonic soundwaves in order to enhance the removal of unwanted contaminants and increase the speed and efficiency of the operation. These soundwaves are typically kept within the high-frequency range of 20-40KHz which cannot be heard by the human ear. At this level, the soundwaves will begin to create cavitation bubbles, resulting in the increased pressure and thus promoting the stripping of contaminants from the product.

Rotajet’s range of Ultrasonic Cleaning Equipment incorporates both standalone and fully automated, Multistage Systems that can be integrated into an existing production line. For larger operations, the multistage system can offer a significantly increased throughput rate, whilst ensuring that the manual handling of equipment is kept to a minimum.

Rotajet’s range of swarf recycling machines are design to reclaim high vale metals and superalloys from the machining process. Swarf or turnings represent a significant loss of material during the manufacturing process, leading to high quantities of waste from production. By turning this waste into a high-quality commodity, companies can begin to reduce their waste whilst also turning a profit from scrap metals.

With two standard, specialised systems, Rotajet has developed swarf washing machinery that is ideal for use in the size reduction, decontamination, and drying of the material; creating a vacuum-grade standard of raw material for resale into the market.

Due to the typically high value of swarf metals, such as titanium and nickel-iron-cobalt, that are often produced from production lines, the process of recycling can be an extremely lucrative one if done correctly. That’s why Rotajet’s RJ-RDW and RJ-RPW are designed to take care of the entire recycling process from start to finish.

RJ-RPW

Play Video

RJ-RDW

Play Video
The Rotajet RJ-RDW Swarf Recycling Line is designed to process a high throughput rate whilst removing stubborn contaminants such as; heavy oils and carbon deposits. With both a chemical wash and a rinse stage, this line offers the thorough cleaning of swarf that is necessary for producing a quality product that can be resold for profit.


To achieve a quicker throughput rate, Rotajet’s RJ-RPW is designed to clean the swarf material efficiently before it is passed through to the next stage of production. Managing everything from washing and drying through to ferrous removal, the RJ-RPW can take care of this full process safely and with very little operator input. Also taking into account the physical properties of the metal turnings, this machine has been designed specifically to manage the material being processed in order to produce a high-quality out-feed.

For more information on Rotajet’s range of Swarf Recycling machines, get in contact with our team today.

When it comes to parts and components cleaning, there are two main options to consider; manual or use of an automatic spray washing machine. One of the major distinguishing factors between the two options is undoubtedly the price, but the other major factor is the quality of the cleaning standard that is achieved.

Another thing to consider with manual cleaning and degreasing, however, is the numerous risks that would not otherwise be present with spray washing machine. The hazards involved can be related to several different factors, including; using harmful chemicals and cleaning detergents, handling sharp objects, and electric shocks.

Selecting the right chemicals to use when manually cleaning is paramount to not only achieving a good cleaning standard but to ensuring that the part or components subject to being cleaned will be exposed to chemicals that could be potentially corrosive or otherwise detrimental to their material structure. For example, where high pH cleaners like aqueous alkaline might be effective in cleaning stainless steel components, the same chemical may cause wear, discolouration or etching to aluminium parts.

More importantly, when cleaning with chemicals, it is crucial that measures are taken to ensure the safety of any individuals who may be exposed. While exposure can refer to the direct use of the chemicals, the vapour given off can also represent a major risk to humans. To rescue risks such as these, there are a number of ways in which to ensure maximum protection when washing with potentially harmful chemicals, including:

● Keeping the environment well ventilated, e.g. by opening windows, using extractor fans, etc.

● Wearing protective and waterproof clothing and goggles to avoid direct contact with the skin and eyes

● Regularly washing hands and maintaining general hygiene

● Use sealed proprietary equipment as opposed to open containers of cleaning solvents/chemicals

● Avoid any open flames or intense heat as cleaning chemicals are often highly flammable

While the use of cleaning chemicals and detergents introduces major possible risks to manual cleaning and degreasing, there are other potentially hazardous factors that should equally be reduced at all costs. Some of the ways in which to reduce these risks include;

● Ensuring that any electrical equipment used has been fully tested and regularly maintained.

● Wearing protective items to avoid contact with sharp objects e.g. goggles, gloves, full-length clothing, etc.

● Keep temperatures of cleaning agents and environments to a low level that will not cause harm to humans.

If high temperatures are used, ensure that precautions are taken to avoid direct contact with heat, such as; maintaining a far distance, wearing heat-proof clothing, etc.

Potential hazards are not the only thing to note when considering manually cleaning parts and components. For example, manual cleaning can use a considerable amount more energy, water, and detergent than machine washing. On top of this, the labour involved with manual cleaning is mountainous when compared to machine washing which, in a workplace setting, can increase costs by a significant amount, not to mention having potentially harmful effects on mental health.

The major thing to note when opting for manual parts cleaning as opposed to machine washing is the significantly lower standard of overall cleaning quality. A much higher standard of cleaning can be achieved with a machine spray washer for a number of reasons, including;

● The consistent and repeatable cleaning quality that is unlikely to be achieved manually

 ● The optimised use of cleaning chemicals and freshwater introduced at temperatures of up to 90 degrees

● High-pressure driven spray nozzles that can clean and decontaminate in places that would be hard to reach manually

Degreasing Machine for parts washing

Spray Washers

Top-loading and Front-loading Spray Washers



swarf degreasing machine

swarf degreasing

Clean turnings for reprocessing

continuous tunnel washer in action

Tunnel Washers

Automatically wash components

Non destructive testing

NDT

Remove contaminants for testing
